Digital Printhead, Kyocera Printhead

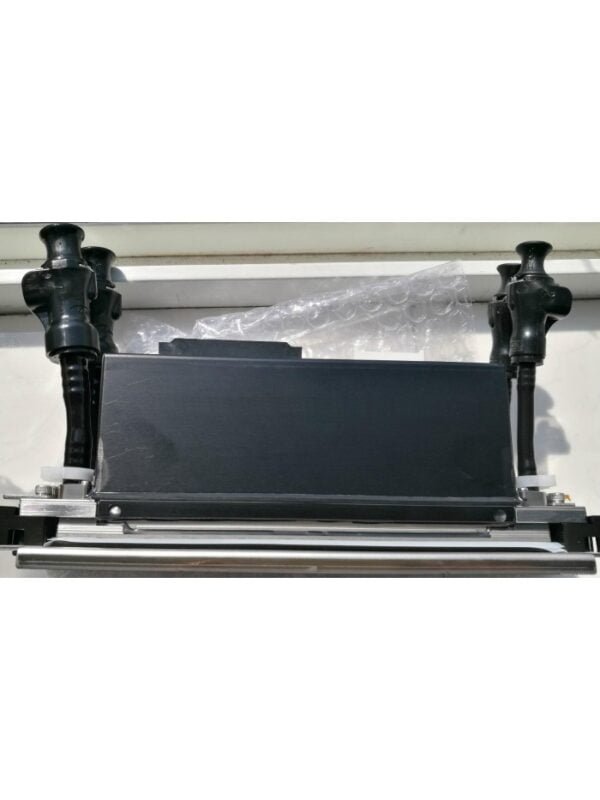

KYOCERA KJ4A-0300 INKJET PRINTHEAD 300Dpi – 30kHz – For UV ink
- This new generation Kyocera KJ4A-0300 is designed for high speed single-pass applications with printers using aqueous ink.
- It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz.
- It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swath
SKU: PT-KY-KJ4A-0300
KYOCERA KJ4A-0300 INKJET PRINTHEAD 300Dpi – 30kHz – For UV ink
- This new generation Kyocera KJ4A-0300 is designed for high speed single-pass applications with printers using aqueous ink.
- It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz.
- It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swath
$4,693.00
68 in stock


Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.
$8,639.25 for 3 item(s)
This new generation Kyocera KJ4A-0300 is designed for high speed single-pass applications with printers using aqueous ink. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swathe.
Specifications
- Ink Type: UV ink
- Dimensions: 200 × 36 × 61.4mm
- Dry Weight: 540g
- Total Nozzles: 2.656 (2x 1328)
- Standard Resolution: 300 x 300dpi
- Print Width: 112.35mm
- Max. Drive Frequency: 30kHz
- Drop Volume: 4, 6, 10 and 14pl
- Max. Sprint Speed: 158m/min
- Typical ink viscosity: 7.0-7.5 mPa
COMPATIBLE PRINTER :
Handtop
- HT2500UV HR8
Weight | 2.5 kg |
---|---|
Dimensions | 30 × 30 × 30 cm |
Printhead brands | Kyocera |
