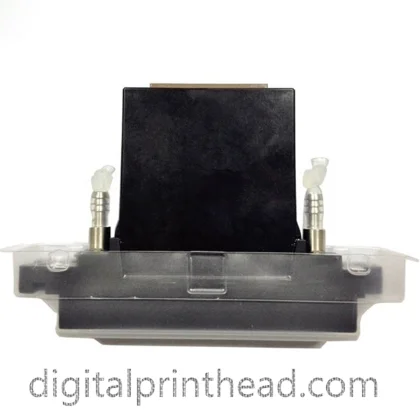

Konica 1024 LHB 42PL UV & Solvent Print head For JHF Myjet Allwin GZ Printers

  • The Konica Minolta KM1024 LH print head is a robust, shear mode
  • Piezo on-demand print head that is usable in both binary and 8 level greyscale mode

$2,995.25 $3,020.00

3 in stock

Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:

The Konica Minolta KM1024 LH print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM1024 LH print head is a vast improvement over the KM512 print head series, offering twice the print width and double the level of greyscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 LH print head has 1024 nozzles with a droplet size of 42 picolitre and a native resolution of 360 dpi. The print head has an integrated heater, which makes it ideal for UV inks, but suitable for solvent inks as well. This printhead is also known as the Konica Minolta KM1024 LHB. This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty.

Specifications

  • Technology: On-Demand Piezo-Electric (Shared Wall 3 Cycle)
  • Native Resolution: 360 dpi
  • Cal. Droplet Size: 42 picolitre
  • Max. Drops in Greyscale: 8 drops
  • Tot. Amount of Nozzles: 1024 (512 nozzles per line)
  • Nozzle Spacing: 70.5 microns
  • Print Width: 72 mm
  • Firing Frequency: 6.7 kHz
  • Ink Compatibility: UV and Solvent Inks
  • Heater: integrated



COMPATIBLE PRINTERS :



Agfa

  • Anapurna M2050
  • Anapurna M2540 FB
Dilli
  • Neo Titan FB2513-06DW
Flora
  • F1 320UV
IIJ
  • ColourPrint-144
  • ColourPrint-282
  • ColourPrint-352
  • ColourPrint-72
  • MonoPrint 144
  • MonoPrint 282
  • MonoPrint 352
  • MonoPrint 72
SKU: PT-KM1024-LHB-42PL Categories: , Tag:
Weight2 kg
Dimensions30 × 30 × 25 cm
Printhead brands

Konica

Technical Specifications

Printhead NameKM1024SHBKM1024MNBKM1024MHBKM1024LNBKM1024LHB
TechnologyPiezo Drop on Demand (Shared wall 3 cycle)
Resolution180dpi × 2lines = 360dpi
Number of Nozzles512nozzles × 2lines = 1024nozzles
Nozzle Pitch70.5m (141m 2lines)
Drop Size6 pl14 pl42 pl
Max Frequency30.0 kHz12.8 kHz6.7 kHz7.6 kHz
Printing Width72mm
DimensionsW131mm × D18mm × H89mm
Weight150g
Grey scale8 levels
Iternal Heater
Solvent Ink
UV Ink
