Konica KM512 LH 42PL UV Printhead

SKU: PT-KM512-LH-42PL Categories: , Tag:

$1,737.65 $1,852.00

10 in stock

Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.

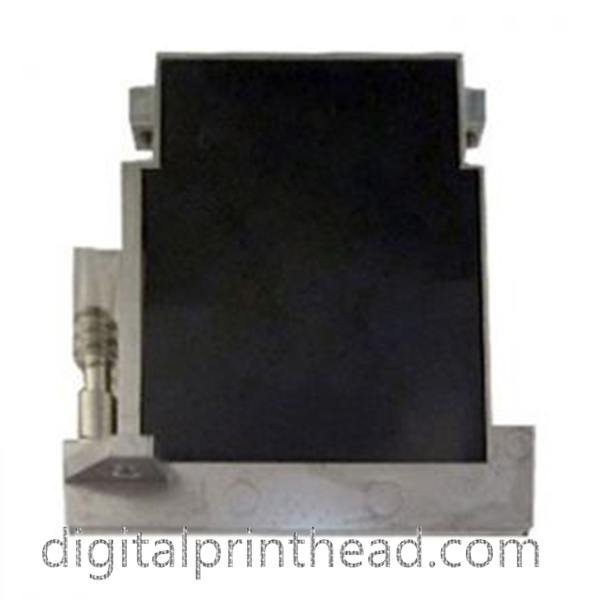

Konica KM512 LH 42PL UV Printhead
This Print Head is a robust, shear mode, piezo on-demand print head that is usable in binary mode only. It has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi. It has an integrated heater, which makes it ideal for oil based and UV inks, but it works with Solvent Ink as well. The heater can be heated up to 55°C.
To be used with:
Dilli Neo Titan UV-1606W,

Docan 2512 UV (only for white ink) / 2518 UV (only for white ink) / 2518-16 UV (only for white ink) / 3020 UV (only for white ink),

Gerber Solara Ion V /

Solara Ion X,

Grapo Manta Slim

Octopus II,

Leopard UVB,

Ampla Digital Targa Pro

Flora F1 320UV

SKU: PT-KM512-LH-42PL Categories: , Tag:
Weight 2 kg
Dimensions 20 × 20 × 20 cm
Printhead brands


Technical Specifications

Technology On-Demand Piezo Electric
Native Resolution 360 dpi
Cal. Droplet Size 42 pico litre
Tot. Amount of Nozzles 512 (256 nozzles per line)
Nozzle Spacing 70.5 microns
Print Width 36.1 mm
Firing Frequency 7.6 kHz
Ink Compatibility Oil Based, Solvent and UV Inks
Heater integrated
