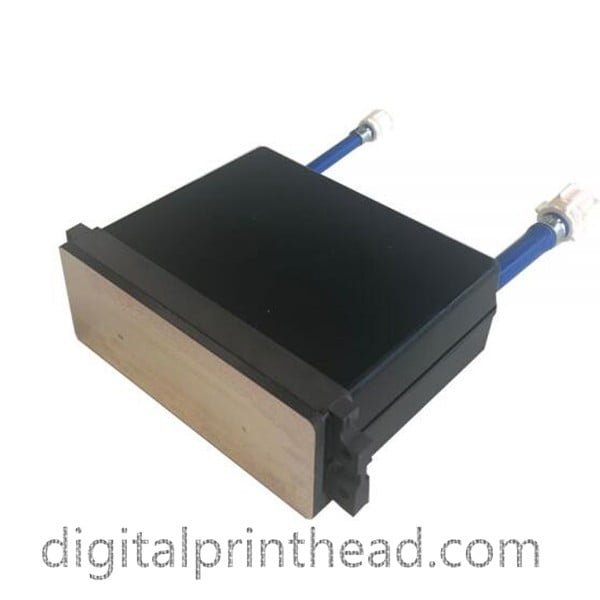

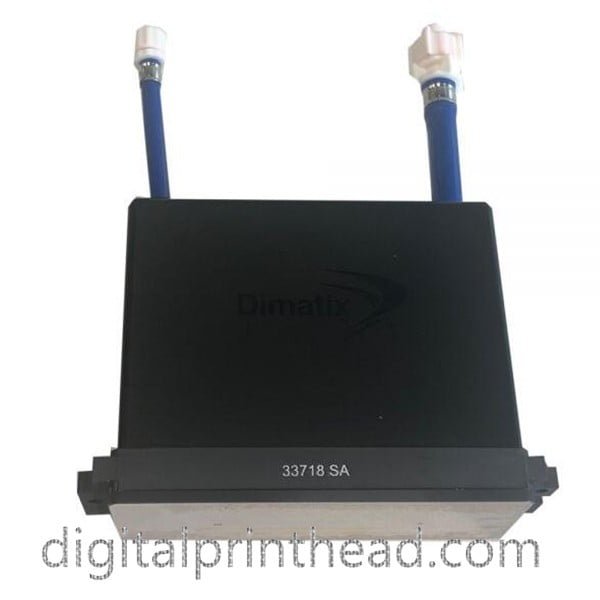

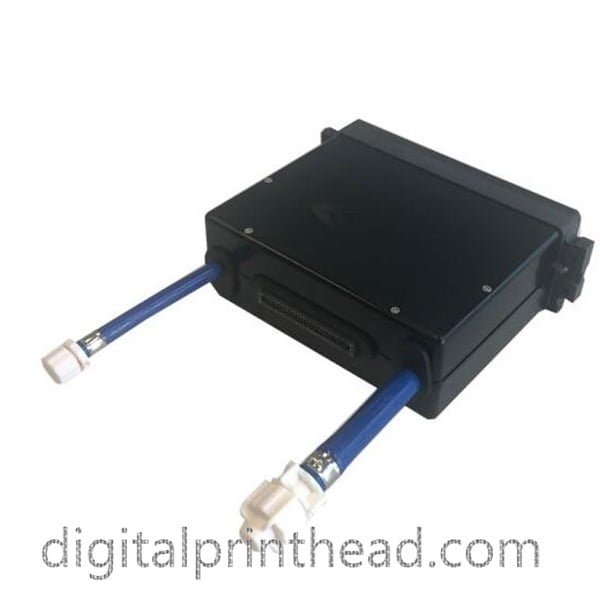

STARFIRE™ SG1024/SA 10PL PRINTHEAD
- Incorporate VersaDrop™ binary and grayscale jetting
- Continuous ink recirculation with RediJet™
- Two colors operation
- Print Width: 64.96 mm [2.55 in.]
- Nominal Drop Size: 30 picoliter
- Adj. The range for Droplet Size: 30 to 80 picoliter
$3,989.00
Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.
-
Dimatix Printhead, Starfire Printhead
STARFIRE™ SG1024/SA 10PL PRINTHEAD
- Incorporate VersaDrop™ binary and grayscale jetting
- Continuous ink recirculation with RediJet™
- Two colors operation
- Print Width: 64.96 mm [2.55 in.]
- Nominal Drop Size: 30 picoliter
- Adj. The range for Droplet Size: 30 to 80 picoliter
SKU: PT-SF-SG1024-SA -
Konica Printhead
Konica KM512 LNX 35PL Printhead
- The Konica Minolta KM512 LNX-35 Print Head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only.
- This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi.
- It is compatible with oil based, solvent and UV inks.
SKU: PT-KM512-LNX-35PL -
Konica Printhead
KONICA KM512 LN 42PL
- The Konica Minolta KM512 LN printhead is a robust print head , shear mode, piezo on-demand printhead that is usable in binary mode only.
- The Konica Minolta KM512 LN printhead has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi.
- It is compatible with oil based, solvent and UV inks. This printhead is also known as the Konica Minolta KM512 LNX.
- This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty.
SKU: PT-KM512-LN-42PL
Specifications
– Incorporate VersaDrop™ binary and grayscale jetting
– Continuous ink recirculation with RediJet™
– Two colors operation
– Print Width: 64.96 mm [2.55 in.]
– Nominal Drop Size: 30 picoliter
– Adj. The range for Droplet Size: 30 to 80 picoliter
– Tot. Amount of Nozzles: 1024 (two separate ink paths each with 512 independent channels)
– Nozzle Spacing: 0.0635 mm [0.0025 in.]
– Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.
– Resolution: Up to 200 dpi
– Operating Temperature: up to 55°C
– Ink Compatibility: UV-curable, organic solvents, and aqueous inks
COMPATIBLE PRINTERS :
- H3204SG
- LJ320SG
- StormJet GZM3202SG
- StormJet GZM3204SG
- GZX2002
- Smart S-2h/4h
- SF 1902
- SF 1904
- SFP 1804
- SFP 1808
- Ultra Star 3302
- Ultra Star 3304
- Ultra Star 3308
- Ultra Star 5304
- Ultra Star 5308
- Star Cruze 3204
- YD1800-XE
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 30 × 20 cm |
| Printhead brands | Dimatix |
Technical Details
Based on 0 reviews
Be the first to review “STARFIRE™ SG1024/SA 10PL PRINTHEAD”
Related products
-
Starfire Printhead, Digital Printhead, Dimatix Printhead
DIMATIX STARFIRE™ SG1024/SA-2C PRINTHEAD
-27%![]()
Starfire Printhead, Digital Printhead, Dimatix PrintheadDIMATIX STARFIRE™ SG1024/SA-2C PRINTHEAD
Specs
- Two-color operation
- Robust and repairable construction
- Drop size range: 12pl (50 Hz) – 33pl (18Hz)
- 1024 individually addressable jets
- Incorporate VersaDrop™ binary and grayscale jetting
- Continuous ink recirculation with RediJet™
- Removable/replaceable collar mounted, coated metal nozzle plate
SKU: PT-starfire-SG1024-SA2C -
Starfire Printhead, Digital Printhead, Dimatix Printhead
STARFIRE™ SG1024/MA PRINTHEAD
Specifications
– Incorporate VersaDrop™ binary and grayscale jetting
– Continuous ink recirculation with RediJet™
– Single color operation
– Print Width: 64.96 mm [2.55 in.]
– Nominal Drop Size: 30 picoliter
– Adj. The range for Droplet Size: 30 to 80 picoliter
– Tot. Amount of Nozzles: 1024 individually addressable jets
– Nozzle Spacing: 0.0635 mm [0.0025 in.]
– Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.
– Resolution: Up to 400 dpi
– Operating Temperature: up to 55°C
– Ink Compatibility: UV-curable, organic solvents, and aqueous inksSKU: PT-starfire-SG1024-MA
