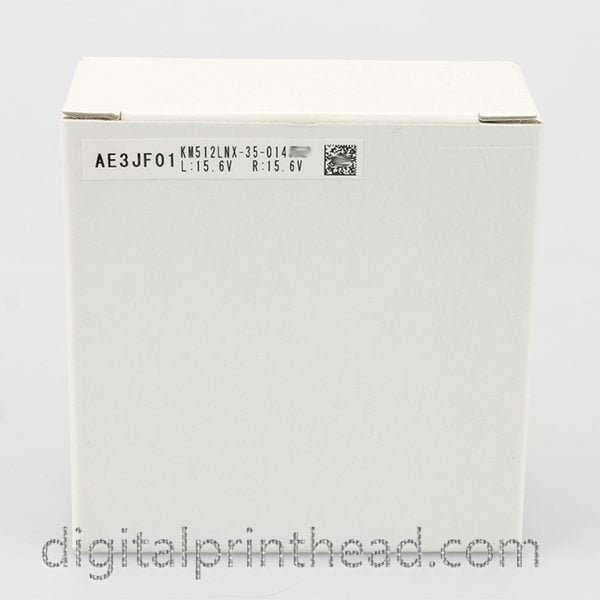

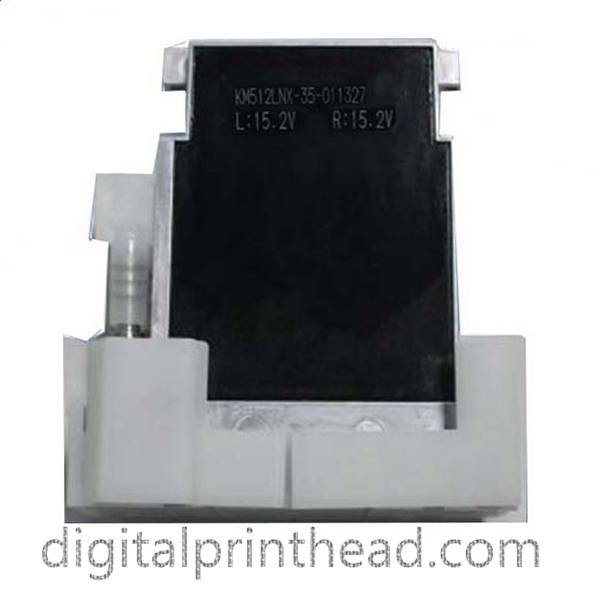

Konica KM512 LNX 35PL Printhead
- The Konica Minolta KM512 LNX-35 Print Head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only.
- This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi.
- It is compatible with oil based, solvent and UV inks.
$990.00 $1,118.00
Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.
-
Konica Printhead
Konica KM512 LNX 35PL Printhead
- The Konica Minolta KM512 LNX-35 Print Head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only.
- This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi.
- It is compatible with oil based, solvent and UV inks.
SKU: PT-KM512-LNX-35PL
Konica KM512 LNX 35PL Printhead
The Konica Minolta KM512 LNX-35 Print Head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only. This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks.
To be used with:
Aestrik InWear S3304K5
InWear S3308K5
Allwin C8 / C12 / H8
Anhui Liyu PT-KL
Apollo PTP1804-KL
Apollo PTP1806-KL
Apollo PTP1808-KL
Apollo PTP3204-KL
Apollo PTP3206-KL
Apollo PTP3208-KL
Apollo PTP18
3202-KC
Apollo PTP18
3204-KC
Apollo PTP18
3206-KC
Apollo PZ3204-KX
Apollo PZ3206-KX
Apollo PZ3208-KX
Maxima PZ3204-KX
Maxima PZ3206-KX
Maxima PZ 3208-KX
JHF
Vista T903316LNX
T903312LNX
V12
Vista3306
S5004F
S5006FS
Myjet
WB320
LB320
LE320
Rodin
K4320-A
K4320-B
Skynet
PC-series
HS-series
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 20 × 20 cm |
| Printhead brands | Konica |
Technical Specifications
|
Technology
|
On-Demand Piezo Electri
|
|
Native Resolution
|
360 dpi
|
|
Cal. Droplet Size
|
35 pico litre
|
|
Tot. Amount of Nozzles
|
512 (256 nozzles per line)
|
|
Nozzle Spacing
|
70.5 microns
|
|
Print Width
|
36.1 mm
|
|
Firing Frequency
|
10 kHz
|
|
Ink Compatibility
|
Solvent
|
|
Heater
|
Not integrated
|
| KM512LNX | KM512LHX | KM512MNX | KM512MHX | KM512LNX-35 | |
|---|---|---|---|---|---|
| Technology | Piezo Drop on Demand (Shared wall 3 cycle) | ||||
| Resolution | 180dpi×2lines＝360dpi | ||||
| Number of Nozzles | 256nozzles×2lines = 512nozzles | ||||
| Nozzle Pitch | 70.5μm（141μm×2lines） | ||||
| Drop Size | 42pl | 14pl | 35pl | ||
| Max Frequency | 7.6kHz | 12.8kHz | 10kHz | ||
| Printing Width | 36.1mm | ||||
| Dimensions | 67mm W × 40mm D × 63mm H | ||||
| Weight | About 95g | ||||
| Grey scale | – | – | 4 levels | – | |
| Iternal Heater | – | ○ | – | ○ | – |
| Solvent Ink | ○ | – | ○ | – | ○ |
| UV Ink | – | ○ | – | ○ | – |
