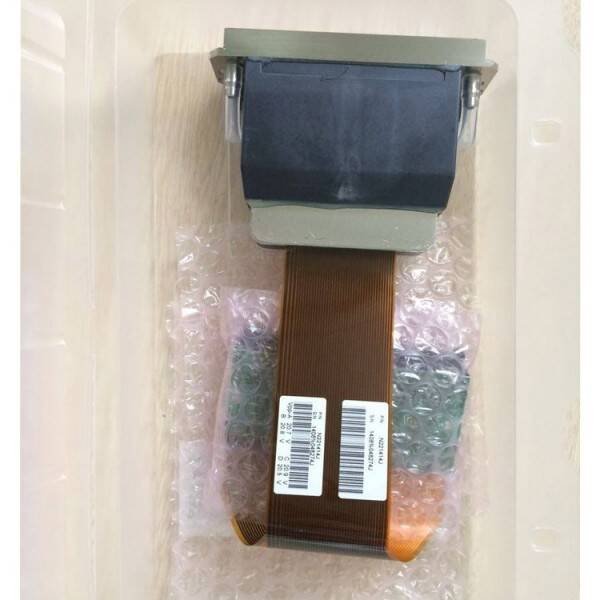

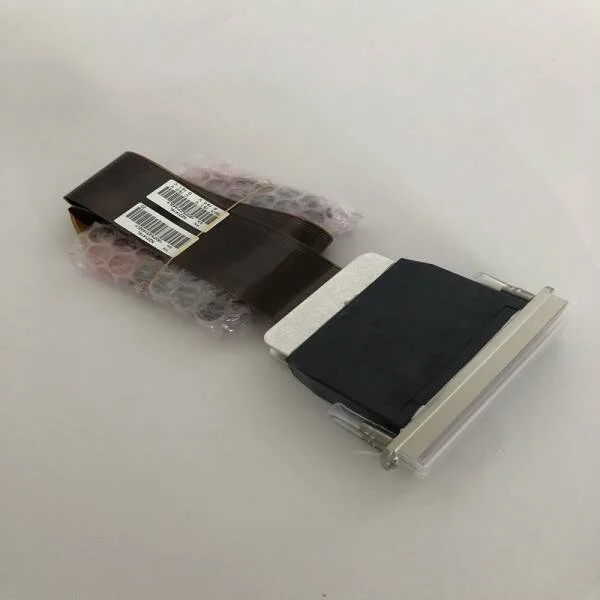

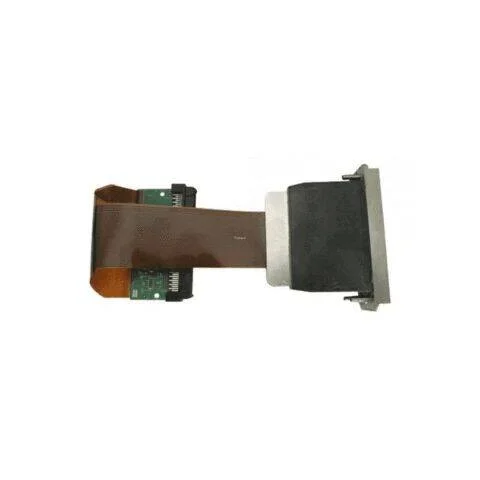

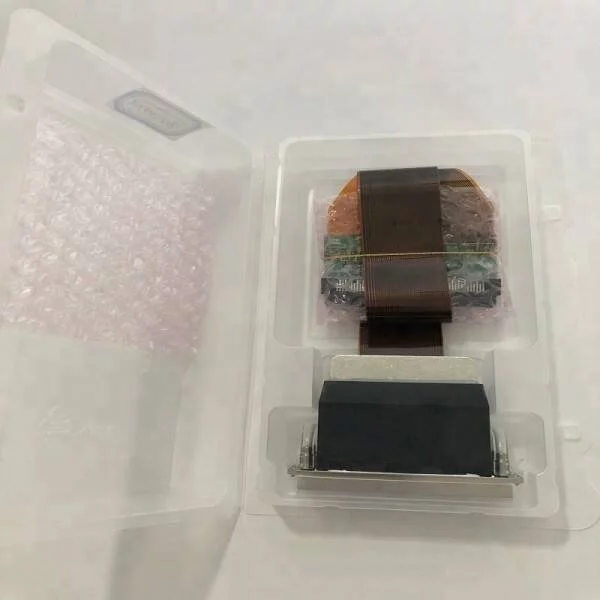

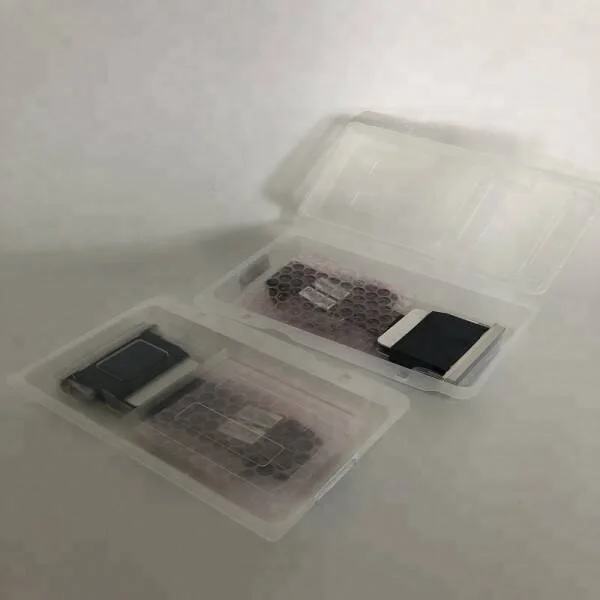

Ricoh-MH5420 GEN5 Printhead Water/UV/Solvent
- This GEN5 UV printhead is suitable for a range of UV and Solvent printers.
- It supports up to four colours and has a total of 1.280 nozzles.
- It is built with longevity and robustness in mind and used in the latest industrial inkjet printers.
- This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty.

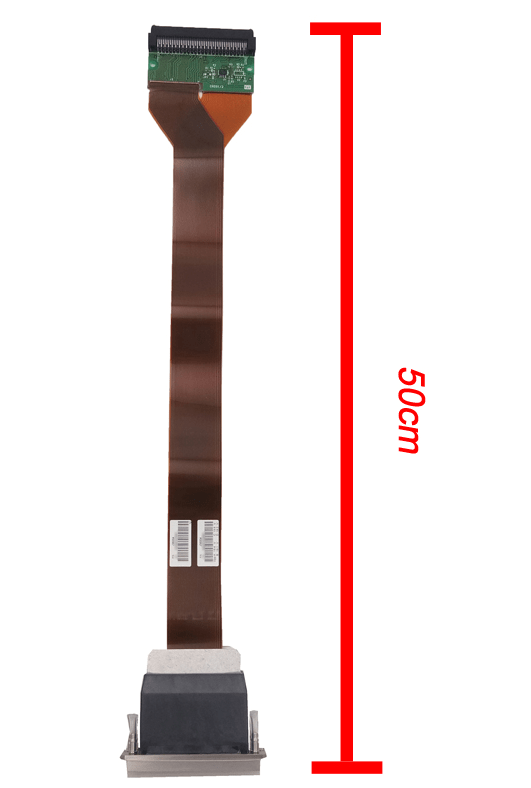

- This Ricoh GEN5 is available in two different cable lengths (connector not included): 140mm or 390mm.
$1,865.21 – $1,892.52
Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.
-
Digital Printhead, Ricoh Printhead
Ricoh-MH5420 GEN5 Printhead Water/UV/Solvent
- This GEN5 UV printhead is suitable for a range of UV and Solvent printers.
- It supports up to four colours and has a total of 1.280 nozzles.
- It is built with longevity and robustness in mind and used in the latest industrial inkjet printers.
- This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty.
- This Ricoh GEN5 is available in two different cable lengths (connector not included): 140mm or 390mm.
SKU: PT-RC-GEN5-MH5420 -
This GEN5 UV printhead is suitable for a range of UV and Solvent printers. It supports up to four colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is available in two different cable lengths (connector not included): 140mm or 390mm.
Product Specifications
- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 npi
- Piezo type: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 – 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHZ
- Ink compatibility: UV Inks
- Life: 100 billion actuations per nozzle
COMPATIBLE PRINTERS :
- 5.0
- 5.0 L
- Jeti Mira MG2716 S/HS
- Jeti Mira MG2732 S/HS
- Jeti Tauro H2500
- Jeti Titan HS
- Jeti Titan S
- NovaJet UV M6
- FG2512
- APro 250FR
- Q5-1000
- Q5-1000h
- Q5-250
- Q5-250h
- Q5-500
- Q5-500h
- 1212 UV
- FR3210
- FRT3116
- M10
- M6
- M8
- LJ180G
- LJ320G
- PP 3220UV
- PP1612UV-G
- PP2512UV-G
- HT1600UV HR4
- HT1610UV FR4
- HT2500UV HR8
- HT2512UV-D FR8
- HT3116UV FR8
- HT3200UV HG12
- HT3200UV HR8
- F1212 UV
- F2030 UV
- F2518 UV
- FR2510 UV
- FRT3215 UV
- FRT3225
- 4896-HRC
- 78118-HRC
- MTS-UV1513RI
- POWER 4S
- POWER PRO 3200
- JV400-130SUV
- JV400-160SUV
- MT-RH1510R
- 3302-G5N
- MC – F2030G
- MC – F2513G
- CS 3300MC
| Weight | 2 kg |
|---|---|
| Dimensions | 35 × 20 × 15 cm |
| RICOH MH5420 | Short cable 140mm, Long cable 390mm |
| Printhead brands | Mimaki, Ricoh |
