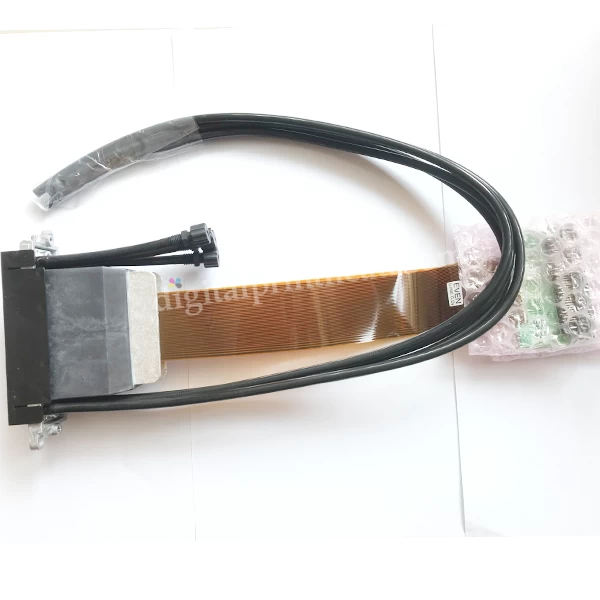

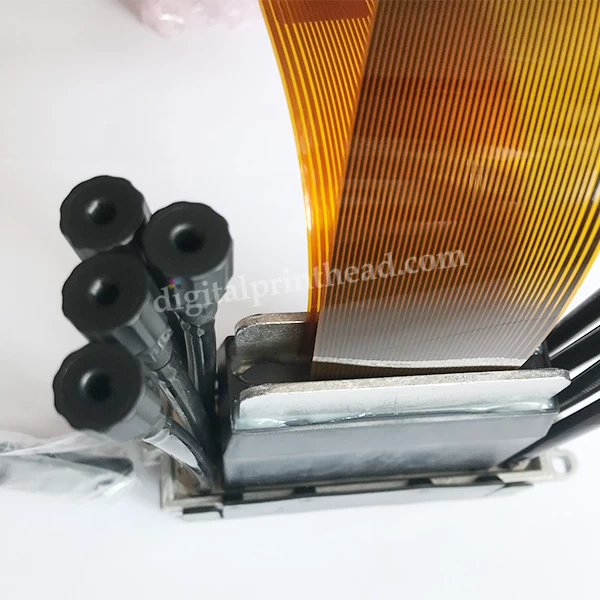

MIMKAI PRINTHEAD M015068 /M022626 FOR JFX500-2131 PRINTHEAD GEN5 ASSY – M015068/M022626
This original mimaki printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four color support, 8 levels of grayscale and up to 600 dpi nozzle density. This is the original Mimaki part (number M022626 replacing M015068/M013497).
$2,517.00
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
This original mimaki printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four color support, 8 levels of grayscale and up to 600 dpi nozzle density. This is the original Mimaki part (number M022626 replacing M015068/M013497).
Product Specifications
- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 dpi
- Piezo type: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 – 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHz
- Life: 100 billion actuations per nozzle
COMPATIBLE PRINTERS:
Mimaki
- JFX500-2131
- UJV500-160
- UJV55-320
- SIJ-320UV
- SWJ-320EA
| Weight | 2.1 kg |
|---|---|
| Dimensions | 40 × 20 × 20 cm |
| Printhead brands | Mimaki, Ricoh |
