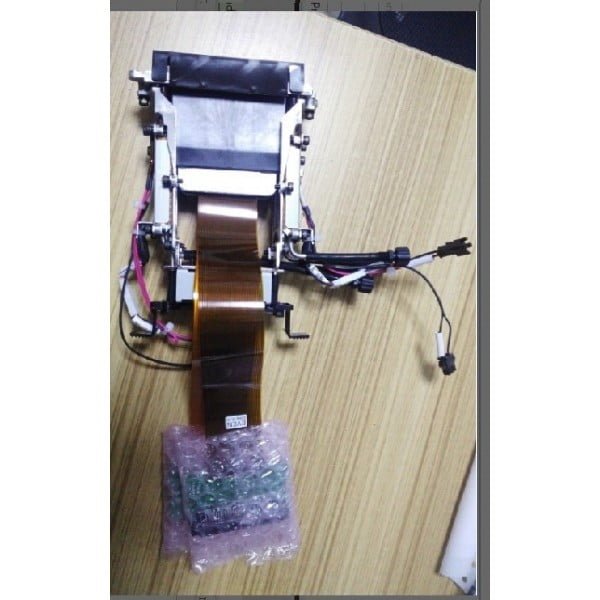

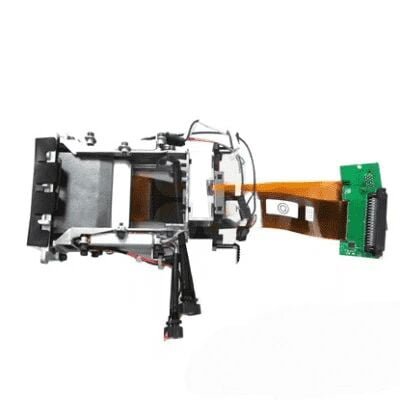

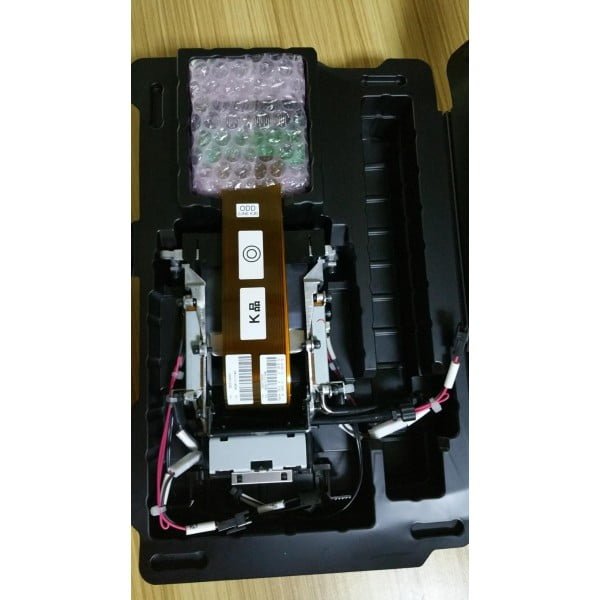

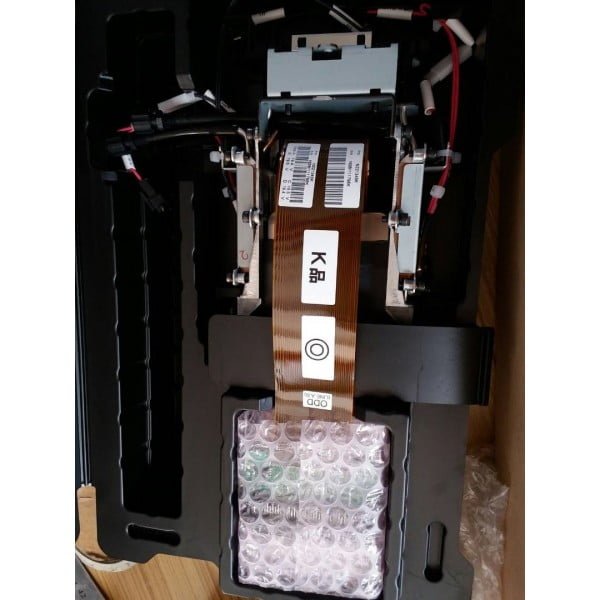

Mimaki JFX200-2513 Printhead – M017004
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers.
It has two and four color support, 8 levels of grayscale and up to 600 dpi nozzle density.
This is the original Mimaki part (number M017004 replacing M015028).
$2,630.00
28 in stock
Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.
-
Digital Printhead, Mimaki Printhead, Ricoh Printhead
Mimaki JFX200-2513 Printhead – M017004
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers.
It has two and four color support, 8 levels of grayscale and up to 600 dpi nozzle density.
This is the original Mimaki part (number M017004 replacing M015028).
SKU: PT-MK-G5 -
Konica Printhead
Konica KM512 LNX 35PL Printhead
- The Konica Minolta KM512 LNX-35 Print Head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only.
- This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi.
- It is compatible with oil based, solvent and UV inks.
SKU: PT-KM512-LNX-35PL
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four color support, 8 levels of grayscale and up to 600 dpi nozzle density. This is the original Mimaki part (number M017004 replacing M015028).
Product Specifications
- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 dpi
- Piezo type: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 – 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHZ
- Life: 100 billion actuations per nozzle
- JFX200-2513
| Weight | 2.5 kg |
|---|---|
| Dimensions | 40 × 32 × 22 cm |
| Printhead brands | Mimaki |
Technical Specifications
| Brand | Mimaki |
