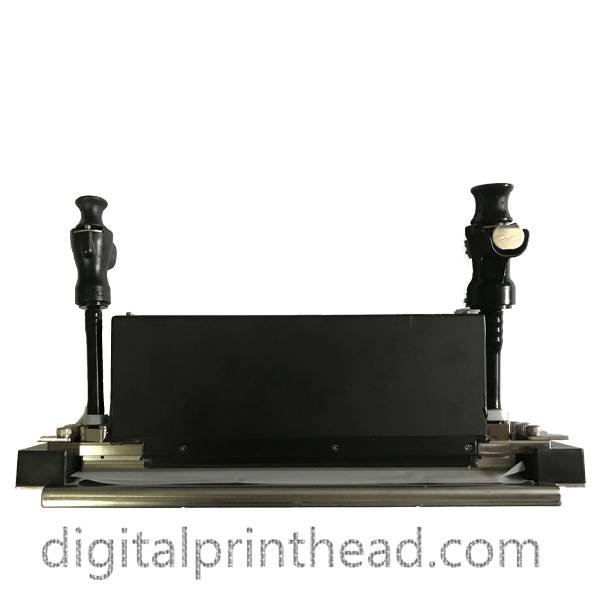

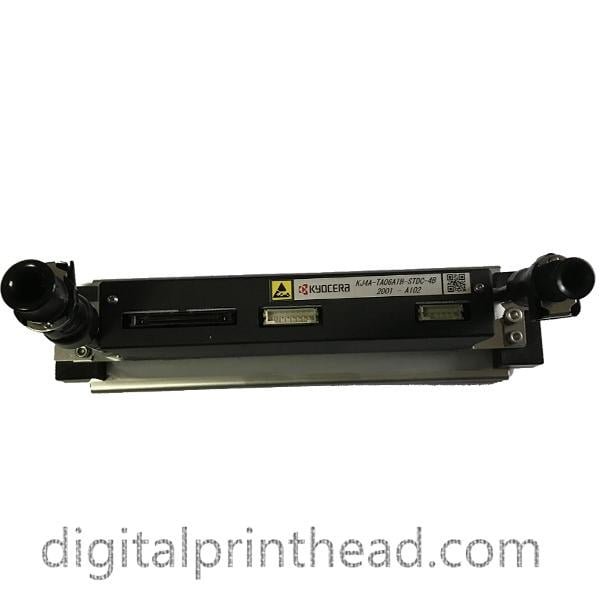

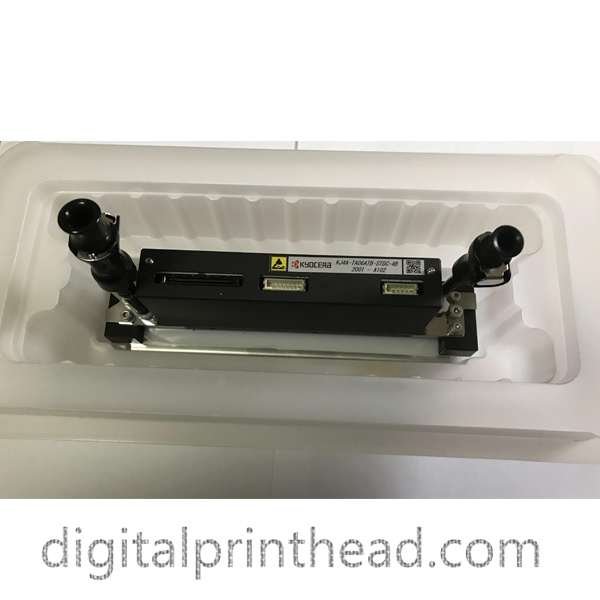

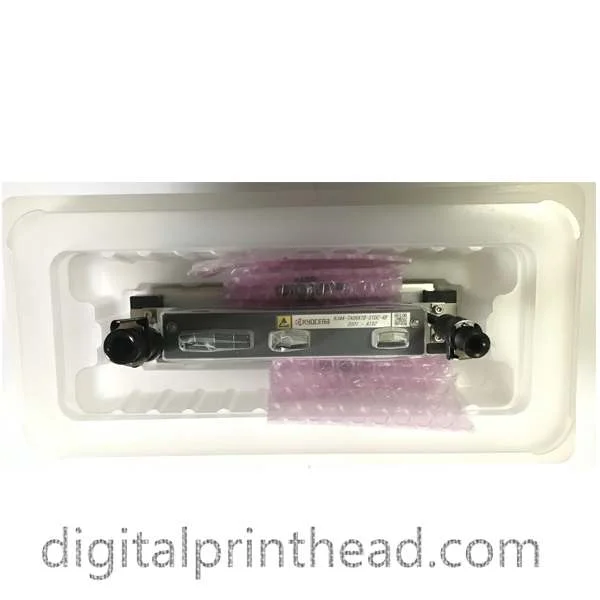

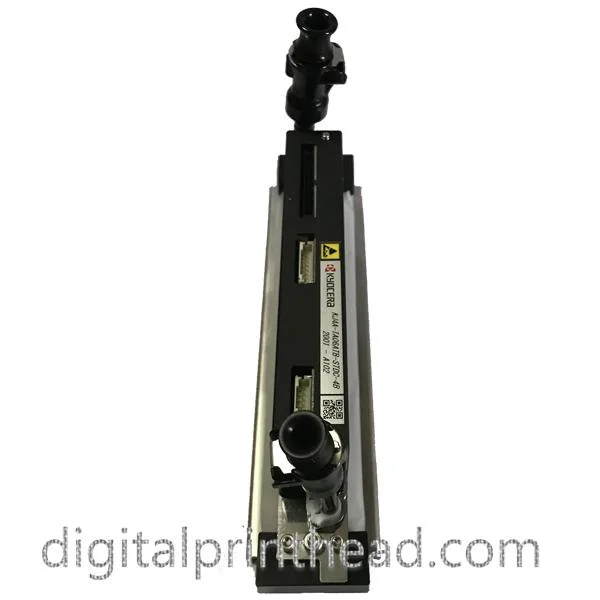

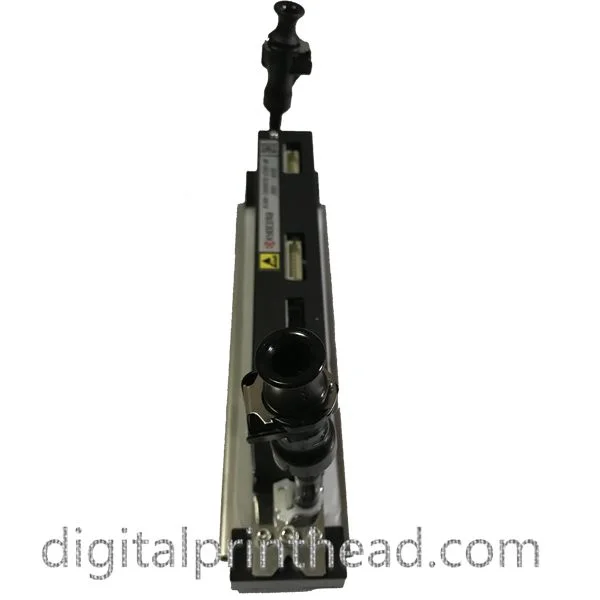

KYOCERA KJ4A-TA INKJET PRINTHEAD

This new generation Kyocera KJ4A-TA is designed for high-speed single-pass applications with printers using UV ink.

It is a 600dpi two colors printhead with a maximum drive frequency of 20kHz.

$6,365.00 $7,697.00

17 in stock

Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.

$13,336.00 for 3 item(s)
This new generation Kyocera KJ4A-TA is designed for high-speed single-pass applications with printers using UV ink. It is a 600dpi two colors printhead with a maximum drive frequency of 20kHz. It delivers high quality with a small drop volume of  6pl at 158 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe.
Specifications
  • Ink Type:  UV ink
  • Dimensions: 200 × 25 × 59.3 mm
  • Dry Weight: 540g
  • Total Nozzles: 2.656 (2x 1328)
  • Standard Resolution: 600 x 600 dpi
  • Print Width: 108.25 mm
  • Max. Drive Frequency: 20kHz
  • Drop Volume: 6,7,11 & 14PL
  • Max. Sprint Speed: 50 m/min
  • Typical ink viscosity: 6.0-7.0 mPa

Applications for KJ4AA: Offset Surprint, Sign Graphics, and Labels.
Weight 4 kg
Dimensions 40 × 40 × 40 cm
