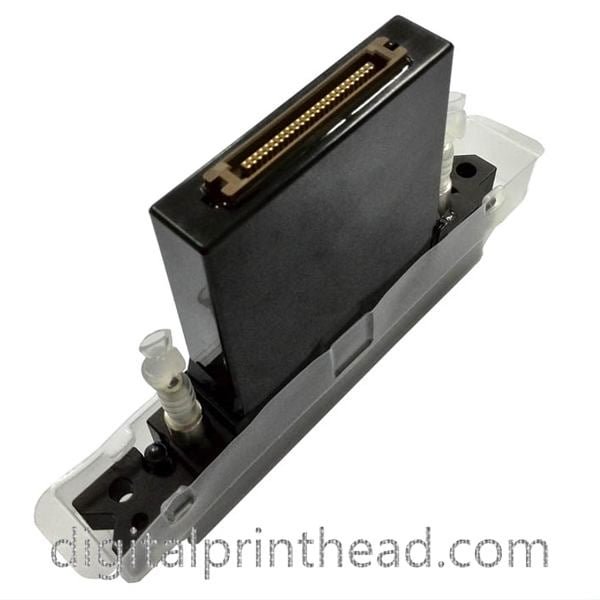

KONICA KM1024 MNB 14PL OIL & SOLVENT

SKU: PT-KM1024-MNB-14PL Category: Tag:
  • The Konica Minolta KM1024 MNB print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode
  • Providing variable drop size and higher print quality without the use of additional print heads.

$1,590.00 $1,650.00

50 in stock

Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.

$6,499.00 for 3 item(s)

The Konica Minolta KM1024 MN print head is a robust, shear mode, piezo on-demand printhead that is usable in both binary and 8 level grayscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM1024 MN print head is a vast improvement over the KM512 print head series, offering twice the print width and double the level of grayscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 MN printhead has 1024 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi. The print head is compatible with oil based and solvent inks. This printhead is also known as the Konica Minolta KM 1024 MNB. This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty.

Specifications

  • Technology: On-Demand Piezo Electric (Shared Wall 3 Cycle)
  • Native Resolution: 360 dpi
  • Cal. Droplet Size: 14 pico litre
  • Max. Drops in Greyscale: 8 drops
  • Tot. Amount of Nozzles: 1024 (512 nozzles per line)www.allprintheads.com
  • Nozzle Spacing: 70.5 microns
  • Print Width: 72 mm
  • Firing Frequency: 12.8 kHz
  • Ink Compatibility: Oil Based and Solvent Inks
  • Heater: not integrated

COMPATIBLE WITH :

Agfa
  • Anapurna M1600
  • Anapurna M²
  • Anapurna M2050
  • Anapurna M2540 FB
Allwin
  • C8
DGI
  • VE-3206
Dilli
  • Neo Titan FB2513-06DW
  • Neo Titan UVT-1604D
SKU: PT-KM1024-MNB-14PL Category: Tag:
Weight 1.5 kg
Dimensions 30 × 30 × 20 cm
Printhead brands

Konica

Technical Specifications

Product Name KM1024MNB
Drive Mode  On-Demand Piezo Electric (Shared Wall 3 Cycle)
Nozzle Resolution 180dpi×2 rows = 360dpi
Nozzle Number 512 nozzles×2 rows = 1024
Nozzle Spacing 70.5μm =(141um 2 rows)
Drop Volume 14pl
Firing Frequency 12.8kHz
Print Width 72mm
Dimensions W131mm × D18mm × H89mm
solvent ink OK
uv ink OK
Oil Ink OK OK
Max. Drops in Greyscale 8drops
Printhead Name KM1024SHB KM1024MNB KM1024MHB KM1024LNB KM1024LHB
Technology Piezo Drop on Demand (Shared wall 3 cycle)
Resolution 180dpi × 2lines = 360dpi
Number of Nozzles 512nozzles × 2lines = 1024nozzles
Nozzle Pitch 70.5m (141m×2lines)
Drop Size 6 pl 14 pl 42 pl
Max Frequency 30.0 kHz 12.8 kHz 6.7 kHz 7.6 kHz
Printing Width 72mm
Dimensions W131mm × D18mm × H89mm
Weight 150g
Grey scale 8 levels
Iternal Heater
Solvent Ink
UV Ink
