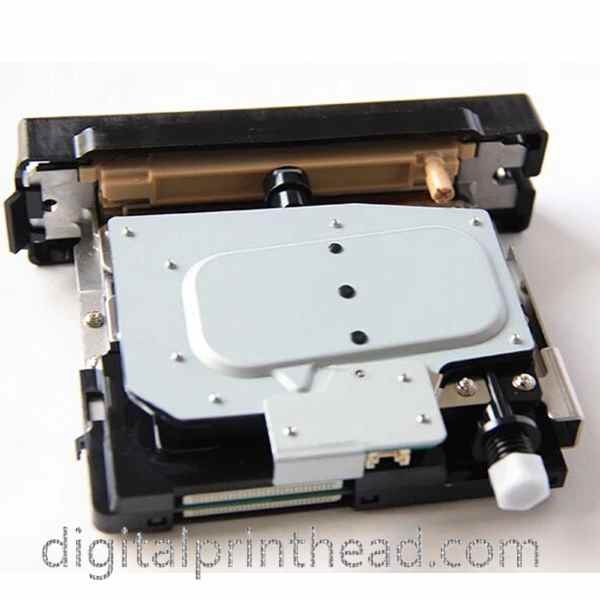

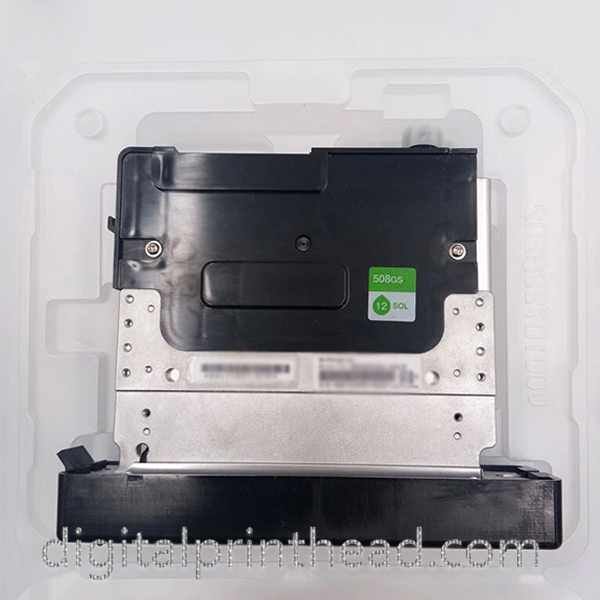

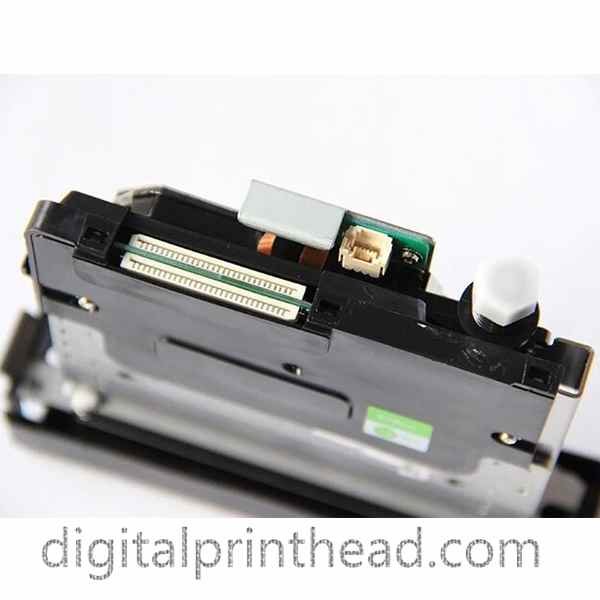

Seiko U508GS 12PL Print Head
- This 508GS 12PL solvent printhead is suitable for a range of printers, including Infiniti printers.
- The 508GS is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard.
- This is the original part (number IRH2533U-2410)
$1,423.00
10 in stock
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
-
Seiko Printhead
Seiko U508GS 12PL Print Head
- This 508GS 12PL solvent printhead is suitable for a range of printers, including Infiniti printers.
- The 508GS is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard.
- This is the original part (number IRH2533U-2410)
SKU: PT-SPT-508GS-12PL -
Epson Printhead, Mutoh Printhead
ORIGINAL MUTOH VJ-1604 PRINT HEAD ASSY – DF-49684
- The original VJ-1604 printhead is suitable for the Mutoh ValueJet printer series.
- The VJ-1604 printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.
- The VJ-1604 printhead is either used in 4-colours (2 channels per colour) and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz.
- This VJ-1604 printhead is suitable for Mutoh ValueJet printer series printers.
- Mutoh part number for this print head is DF-49684.
SKU: PT-EP-MT-DX5
$4,407.70 for 3 item(s)
508GS 12PL Greyscale Printhead-IRH2533U-2410
This 508GS 12PL solvent printhead is suitable for a range of printers, including Infiniti printers. The 508GS is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard. This is the original part (number IRH2533U-2410)
To be used with:
infiniti challenger FY-3266T
Challenger FY-306T
Challenger FY-3208T
Challenger FY-3286T
Challenger FY-3286J
Challenger FY-3208GS,
Crystek X5300
Leyenda 3200F3
1800T3,
Nuocai NC-SPT2531,
Forni HS1804
Icontek TW-1800J3
OraJet J18
CrystalJet 6000 series
Specifications:
Active Print Width: 72mm
Nozzles: 508
Nozzle Plate: Non-Wetting
Physical resolution: 180 dpi
Firing Frequency: 18 kHz (and multiples)
Drop Volume: multiple of 12pl (up to 7 drops)
| Weight | 2 kg |
|---|---|
| Dimensions | 25 × 25 × 25 cm |
| Printhead brands | Seiko |
Technical Specifications
| Active Print Width | 71.54mm |
| Nozzles | 508 |
| Physical resolution | 180 dpi |
| Firing Frequency | 14 kHz (and multiples) |
| Drop Velocity | 5m/s |
| Drop Volume | 12pl |
| Ink Compatibility | UV, Oil and Solvent Inks |
