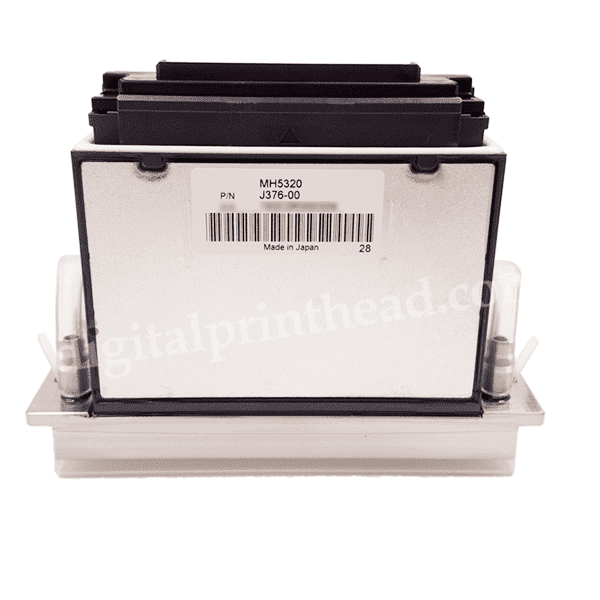

Ricoh MH5320 GEN6 Printhead (Cable: 248mm)

SKU: PT-RC-GEN6-MH5320 Categories: , Tag:

This Ricoh MH5320 printhead with a cable length of 248mm is suitable for a range of UV printers.


Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.

This Ricoh GEN6 head (MH5320 series) is compatible with UV-based inks. The service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it.

A minimized 5pl droplet size and improved jetting accuracy yield excellent print quality without graininess. With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.

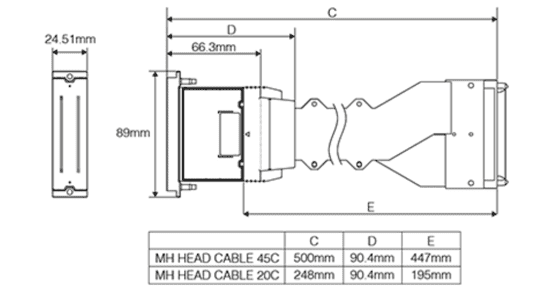

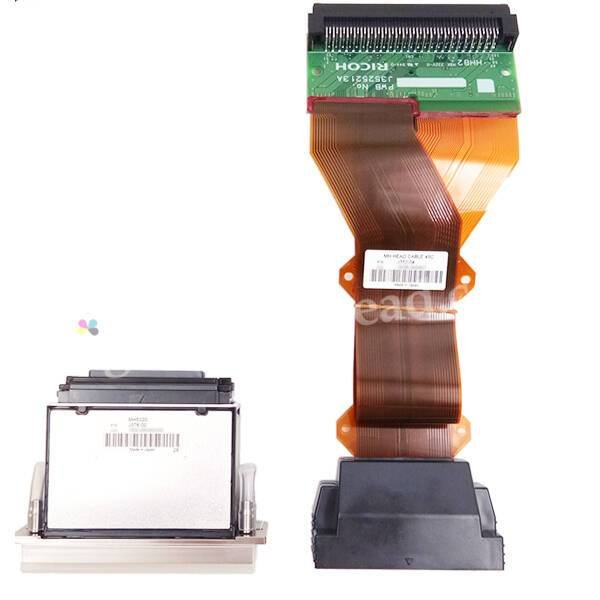

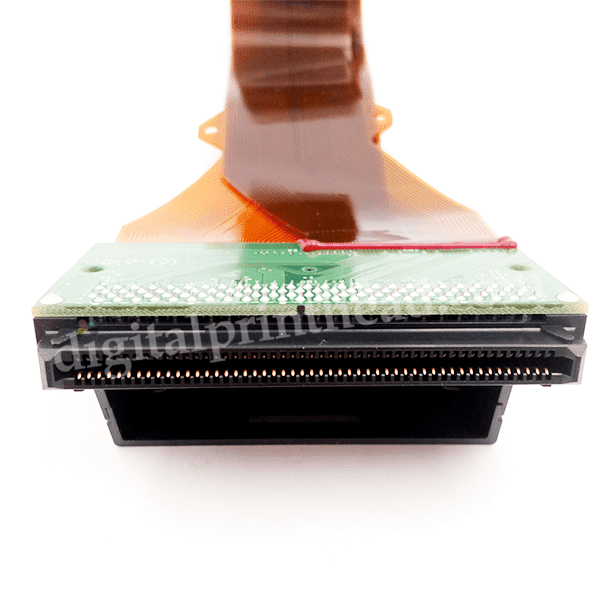

This printhead is available with a cable (including connector) of either 248mm or 500mm. This printhead has a cable of 248mm.

Product Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy, and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 NPI
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: 60° C
  • Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
  • Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
  • Ink Compatibility: UV

Printer Compatibility:

  • M5000
  • SG6 2030
  • MC2512RV
  • Hollanders Colorbooster 320
SKU: PT-RC-GEN6-MH5320 Categories: , Tag:
Weight 1.1 kg
Dimensions 30 × 21 × 16 cm
