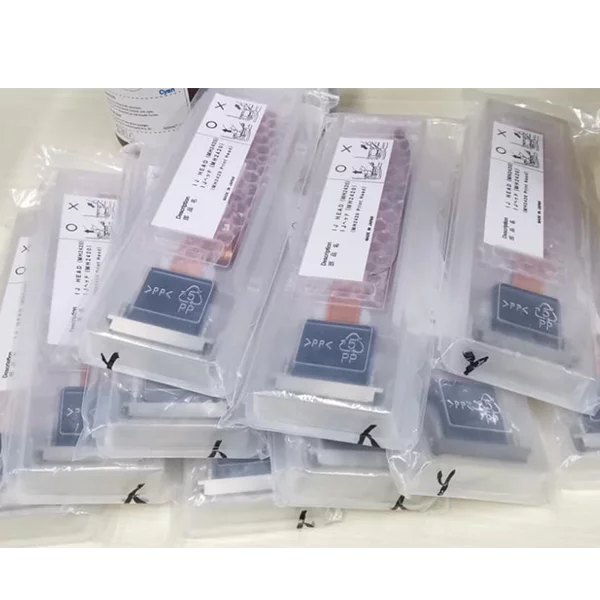

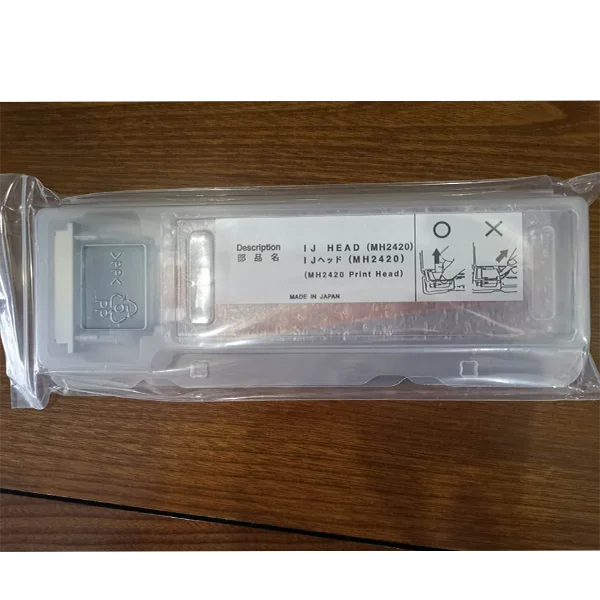

Ricoh – MH2420 GEN4 7-35PL Printhead
The Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers.
$1,213.52
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:

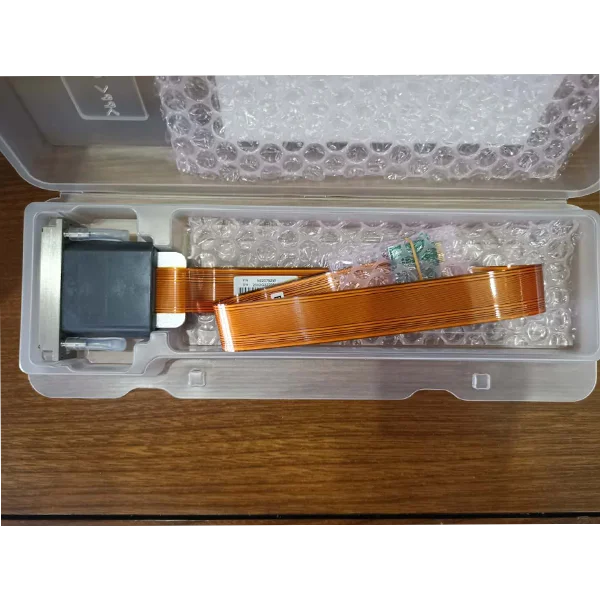

The Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. This cable including the connector is 44 cm long. The printhead comes with hose barb ink inlet that can be removed in. case o-ring sealed ink inlet are required. This printhead corresponds to Ricoh part numbers N220792W, N220792S or N220792E.
Technical Specifications
– Size: 63 x 62.4 x 16,2 mm (excluding cables)
– Number of Nozzles: 2 x 192 nozzles
– Nozzle Spacing within a row: 0,1693 mm
– Nozzle spacing row to row: 0.529 mm
– Temperature Control: Integrated Heater and Thermistor
– Operator Temperature range: Up to 60° C
– Drop Volume Range: Binary mode: 7pl / Grey-scale mode: 7-35 pl
– Jetting Frequency: Up to 30 kHZ
– Surface tension: 28-35nM/m
– Viscosity range: 10-12 mPas
– Grey scale: 4 levels
– Number of ink ports: 2 x dual
– Life: 100 billion actuations per nozzle
Compatible Printers:
- Anajet mPower
- Anajet MPower MP5i
- Anajet MPower MP10i
- CET Color X-Press 500Q
- Digitex Gunsjet SF-1914
- Digitex Gunsjet SR-1808
- Digitex Gunsjet SR-2508
- Digitex Gunsjet SR-3208
- Digitex Gunsjet UF4547
- Durst Omega 1
- Durst Omega 2
- DYSS Apollo GF2616-08F
- DYSS Apollo GF2616-10FFW
- DYSS Apollo GF2616-10FRW
- DYSS Apollo GF2616-12F
- DYSS Apollo GF2616-12S
- DYSS Apollo GF2616-14SFW
- DYSS Apollo GF2616-14SRW
- DYSS Apollo GF2616-16F
- DYSS Apollo GF2616-16SFWFV
- DYSS Apollo GF2616-16SRWRV
- DYSS Apollo GH1600-08F
- DYSS Apollo GH1600-08SF
- DYSS Apollo GH1600-08SR
- DYSS Apollo GH1600-10FM
- DYSS Apollo GH1600-12S
- DYSS Apollo GH1600-12SFWFV
- DYSS Apollo GH2200-08F
- DYSS Apollo GH2200-08SF
- DYSS Apollo GH2200-08SR
- DYSS Apollo GH2200-10FM
- DYSS Apollo GH2200-12S
- DYSS Apollo GH2200-16SFWFV
- DYSS Apollo GH2600-08F
- DYSS Apollo GH2600-08SF
- DYSS Apollo GH2600-08SR
- DYSS Apollo GH2600-10FM
- DYSS Apollo GH2600-12S
- DYSS Apollo GH2600-12SFWFV
- Gandy Digital Domin8tor
| Weight | 1.1 kg |
|---|---|
| Dimensions | 40 × 15 × 10 cm |
| Printhead brands | Ricoh |
