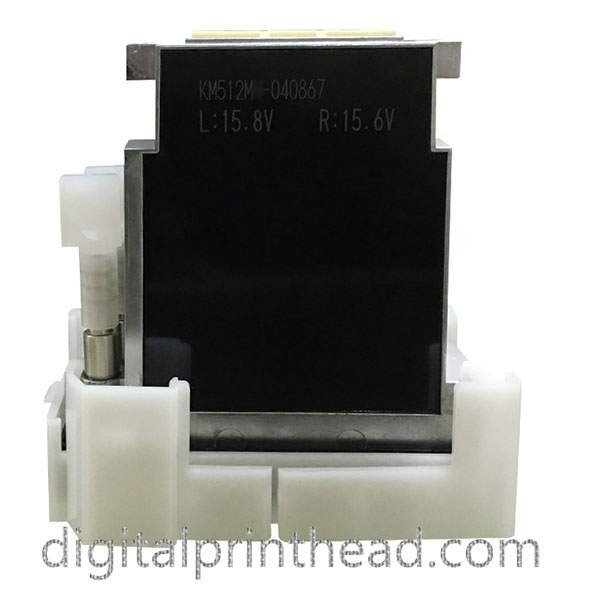

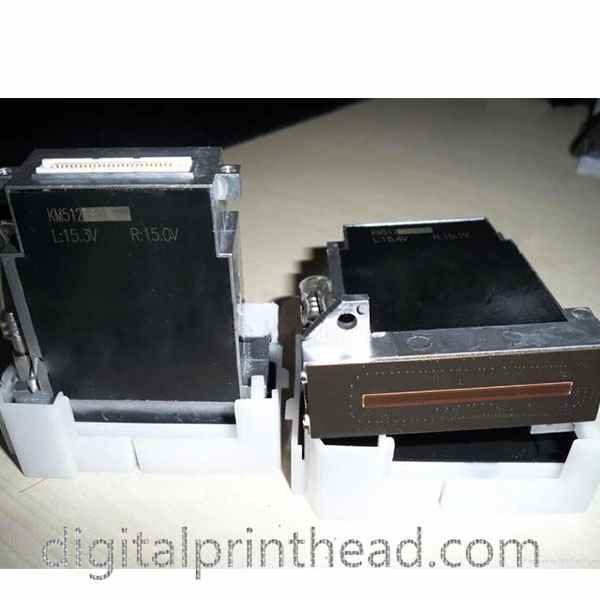

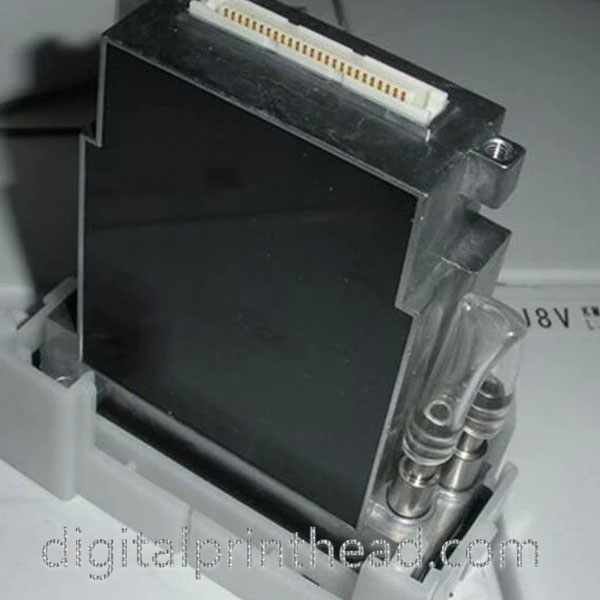

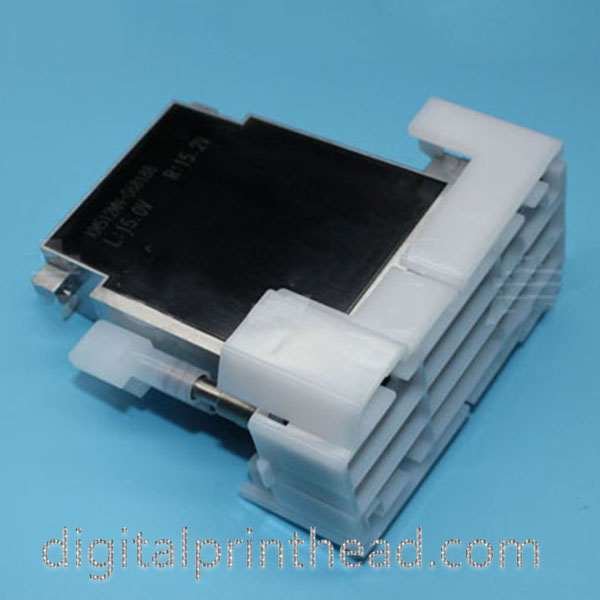

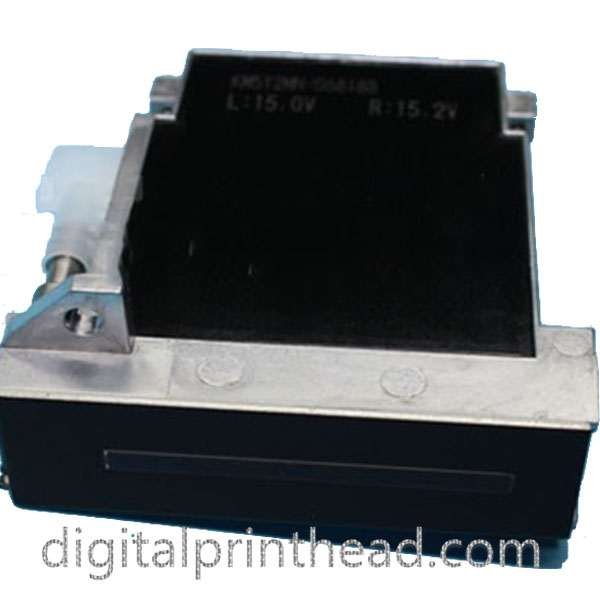

KONICA MINOLTA 512MN -WITHOUT HEATER

The Konica Minolta KM512 MN printhead is a robust, shear mode, a piezo on-demand printhead that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional printheads. The Konica Minolta KM512 MN printhead has 512 nozzles with a droplet size of 14 picoliters and a native resolution of 360 dpi. It is compatible with oil-based, solvent and UV inks.

Shear mode, Piezo On-Demand Printhead

Piezo on-demand inkjet ejects ink drops utilizing deformation of small ink chambers composed of piezoelectric material, by applying an electric field in accordance with signals. The principle of shear mode piezo actuation with a shared wall structure allows lower power consumption as well as a high-density nozzle array.

512 Nozzle with 360 dpi Spacing

High resolution, 360 nozzles per inch spacing has enabled arranging 512 Nozzle on a compactly designed printhead. The KM512 MN corresponds to unit drop volume capabilities of 35pl.

Compatible with Solvent, UV, Oil …

Due to its specially designed internal structure, the KM512 MN boasts a wide range of ink compatibility, including aggressive solvent inks typically used for super-wide format printers. Inks which have high viscosity at room temperature, such as UV ink, can be heated up to 55 degrees Celsius with the H type’s internal heater.

Enabling Compact Design of Head Mount System

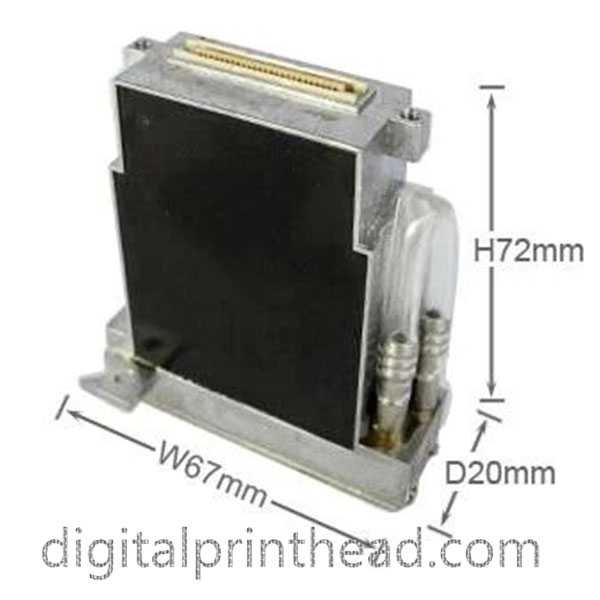

This series is specially designed to have a “wing” structure so that users can precisely align the printheads without difficulty. This feature allows an easy combination of page-width printhead units for the purpose of single-pass high-speed printing. The same external design allows interchangeability of different type heads on the same mount system.

Newly lineup 35pl type for solvent ink

This printhead is available for solvent inks and its nozzle plate which has a depressed portion scratch resistant.

Outdoor Signage

Outdoor signage is one of the most promising markets for Inkjet Printhead printing.
Thanks to their ability to print on various substrates with high productivity, large format inkjet printers have been continuously replacing analog screen processes.

Indoor Graphics

Large-format inkjet printers are also widely utilized for reproduction of high-quality indoor graphics used in restaurants and shopping malls.
Super-fine ink droplets enable reproduction of photo-grade images on a variety of substrates.

Label Printing

There is an ever-growing demand for high-speed, commercial label printing of variable data such as barcodes and individual addresses.
Inkjet technology is the best-suited approach to provide solutions to the label industry.

Material Deposition

Not limited to printing applications, application of inkjet technology is expanding to other fields such as LCD color filter manufacturing and circuit patterning.
Konica Minolta IJ provides solutions for the electronic device manufacturing industry with its renowned precise dot-placement technology.

Textile Printing

Introduction of inkjet has dramatically simplified the workflow of analog textile printing by eliminating laborious plate making processes.
Digital inkjet textile printing, capable of reproducing rich colors and delicate tones with high productivity, has been attracting attention in this industry, too.

To be used with:
Agfa: :

Anapurna M,

Anapurna M4f,

Anapurna Mv,

Anapurna Mw

Anhui LiYu:

Anhui Liyu Apollo PTP-KL,

Maxima PZ-KM,

Maxima PZ3204-KM,

Maxima PZ3206-KM,

Maxima PZ3208-KM

DGI:

SaturnJet ST-1806

OrionJet OR-1806

JHF Vista:

 Vista3306

H8 3304FN

H8 3306FNS

HP DesignJet:

designjet 9000s

DesignJet 10000s

MYJET:

Myjet LB3208KM42

LE3208KM42

WB3208KM42

WC3208KM14

Seiko Color Painter:

Seiko ColorPainter 64S

ColorPainter 100S

Other Brand:

Allwin C8

Flora HJ 3200Turbo

Rodin

K4320-A

K4320-B

K6164-B

K8320-B

k6320-A

Sun Neo Da Vinci

Skynet

PC-series / HS-series, DYSS Apollo PTP3204-KM,

Taimes T5 / T7 ,

Dilli Neo

Titan UVT-1606S /

Neo Titan UVT-1606W,

OCE CS 6060 / CS 6100

Remarks: Original
