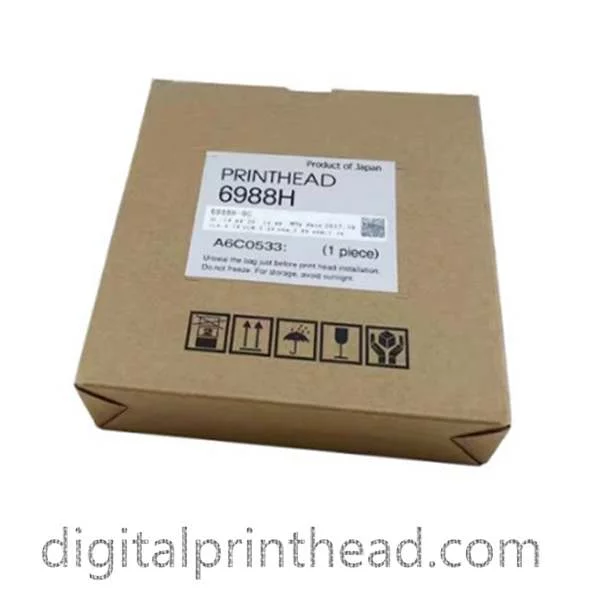

Konica 1024i 6988H -13pl UV Printhead

SKU: PT-KM1024i-6988H-13PL Category: Tag:
  • The Konica Minolta Konica 6988H could replace KM1024i MHE printhead


Ship out within 24 hours (Working time: Monday to Friday).
Need more quantities, please click Bulk Order inquiry button.

The Konica Minolta Konica 6988H is new version of KM1024i MHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring four lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i MHE printhead offers a Maximum Drive Frequency of 45kHz, approximately three times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing. This printhead is Agfa part number D2+755020600085.

Environmentally-considerate Approved Green Product
The Konica Minolta KM1024i MHE printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. Besides, the nozzle unit surface area is the same as that of the KM1024 Series.


• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 13 picolitre
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Firing Frequency: 45 kHz
• Ink Compatibility: UV, Oil and Solvent Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

Compatible Printers:
  • Anapurna 100
  • Anapurna H2500i LED
  • Anapurna M2050i
  • Anapurna M2500i
  • Anapurna M3200i
  • S320UV
  • S500UV
  • UVT 2030
  • UVT 2512
  • UVT+ 2030
  • UVT+ 2512
  • H1000
  • HJ 5000UV
  • PP3200 UV
Human Digital Technology
  • M-JET
  • ColourPrint-72
JHF Vista
  • R3300
  • R6000
  • V300UV
  • V500UV
Optimum Digital
  • KR Hybrid UV
  • 5100 INNO-UV (2016)
  • FT2512i
  • FT3020i
  • Nyala 2
  • T50UV
  • YD2512-KD
