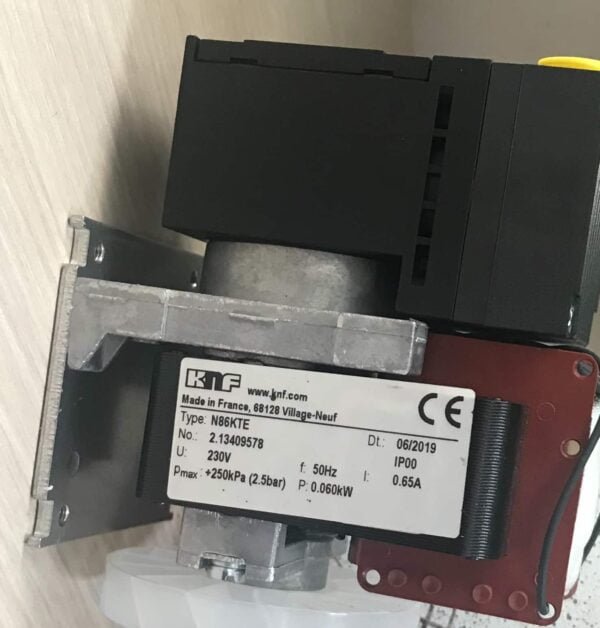

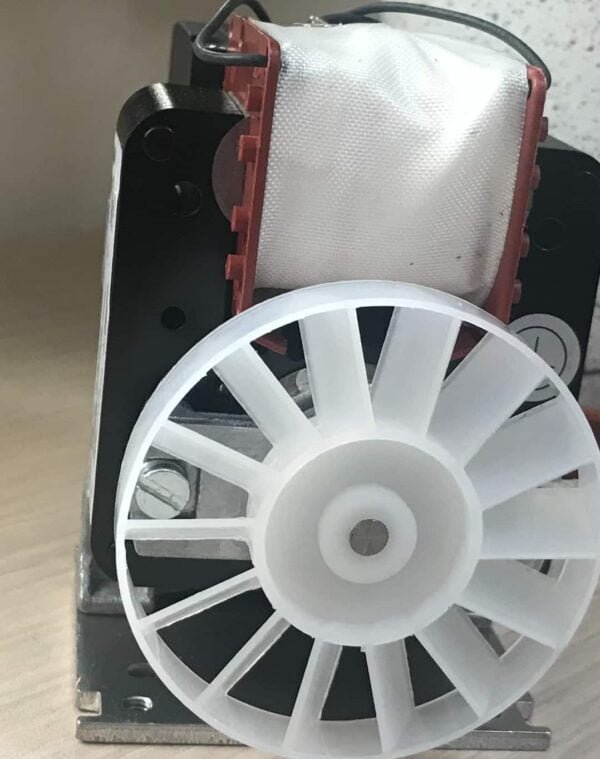

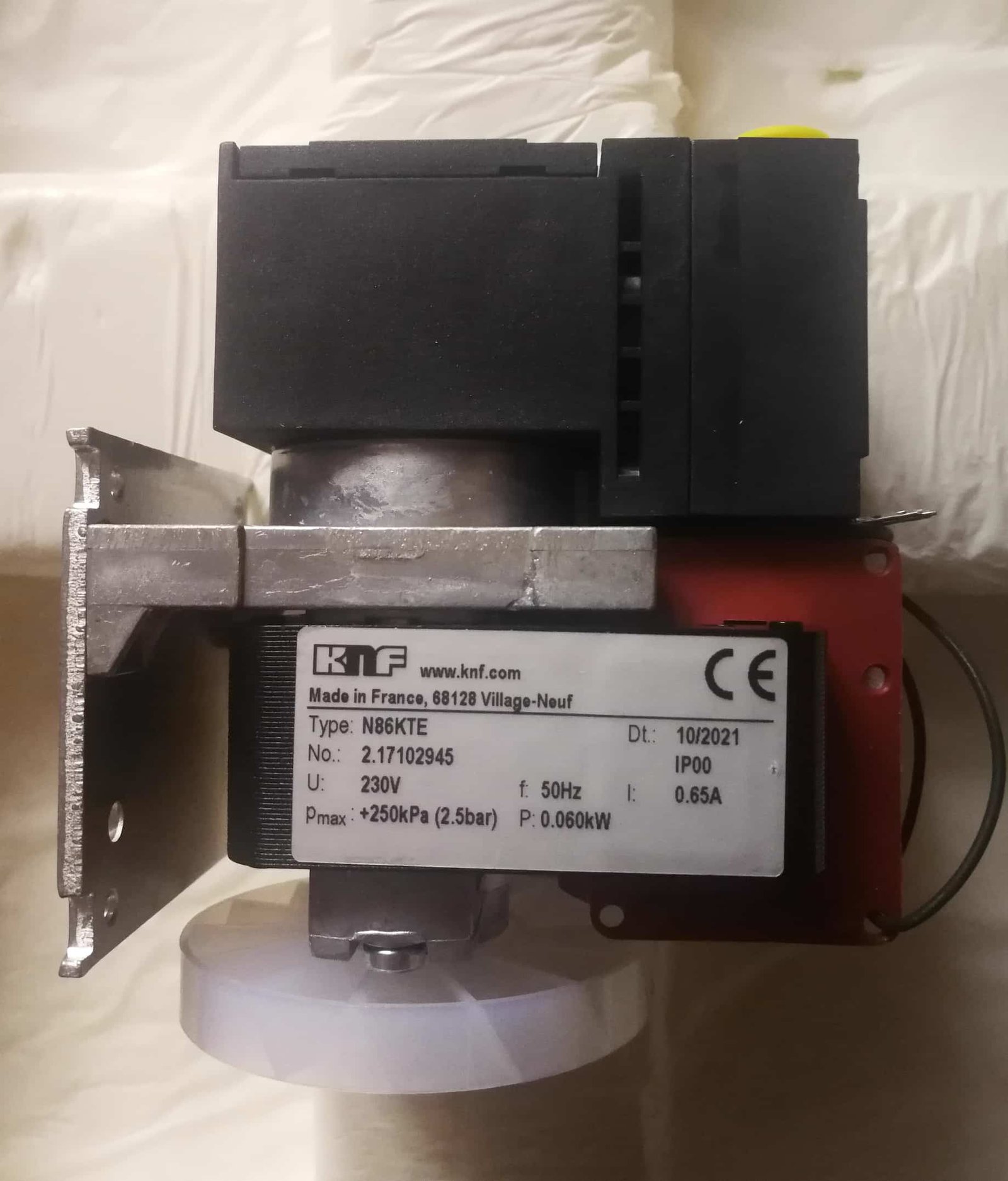

KNF’s N86KTE diaphragm vacuum pump is widely used in CEMS systems of thermoelectric cement and other industries. More than 20% of CEMS systems in China use this pump. Mainly used in industrial process gas continuous analysis system (extraction measurement), extraction gas, is especially suitable for flue gas analysis.SO2, NOX, CO2, CO, N2, O2, and other gases can be extracted.N86KTE pump membrane blue, corrosion resistance.
|power supply||230V 50Hz 0.65a|
|output pressure||+250KPa (2.5bar)|
|product flow rate||6L/Min|
|mounting dimension||48×48 (mm) 4-m4 internal thread|
|air connection:||g1/8 internal thread|
|overall dimension||105x64x92.5 (mm)|
