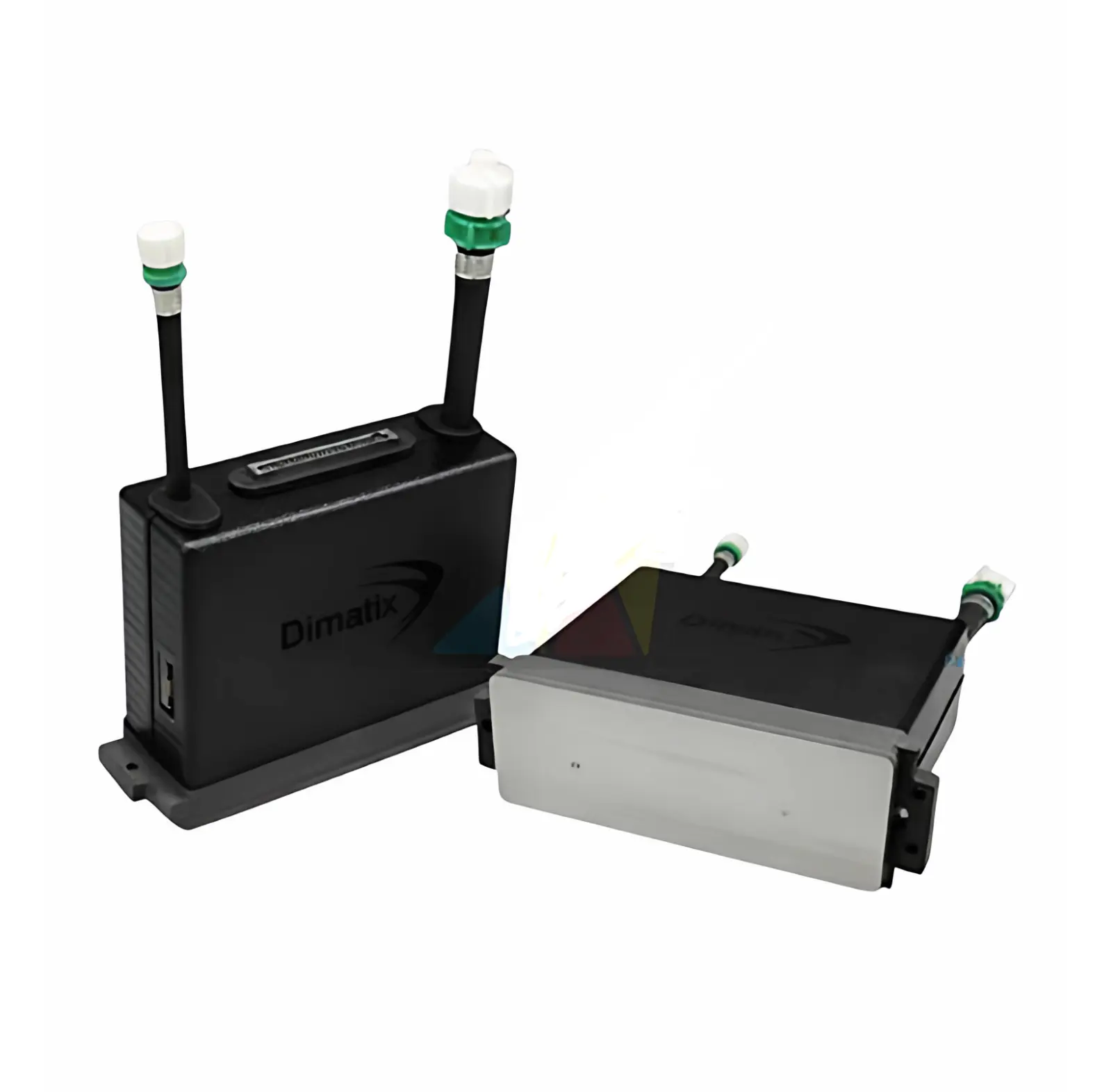

FUJIFILM STARFIRE SG1024 L3F print head
$6,219.70
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
This printhead provides a range of capabilities uniquely designed in support of these demanding application and to ensure the productivity and reliability that are needed in production environment.
To meet those requirements the FUJIFILM STARFIRE SG1024 L3F print head are designed to provide resistance to the aggressive fluids used in sand casting and metal sintering. The printhead also boasts fluid recirculation at the nozzle plate level and well serviceable components that allow our OEM partners to maximize the usable life of these printheads.
Product Data
- Number of addressable jets/module
1024
- Print width
64.96mm (2.55in)
- Native resolution
400dpi
- Native drop size/largest drop size
80pl / 200pl
- VersaDrop™ Max Productivity
1200ng kHz
- Firing frequency
Up to 20kHz
- Inkjet operating temperature range
Up to 50C (122F)
- Nominal fluid viscosity
8-20cP (10-14cP recommended)
- Compatible jetting fluids
UV-curable, organic solvents, and aqueous inks
- Nozzle Plate technology
Metal
- Printhead heat type
Integrated heater, thermal transfer
- OEM accessible non-volatile memory
64-byte rewritable
- Integral temperature sensor
Included
| Weight | 1.8 kg |
|---|---|
| Dimensions | 30 × 30 × 25 cm |
