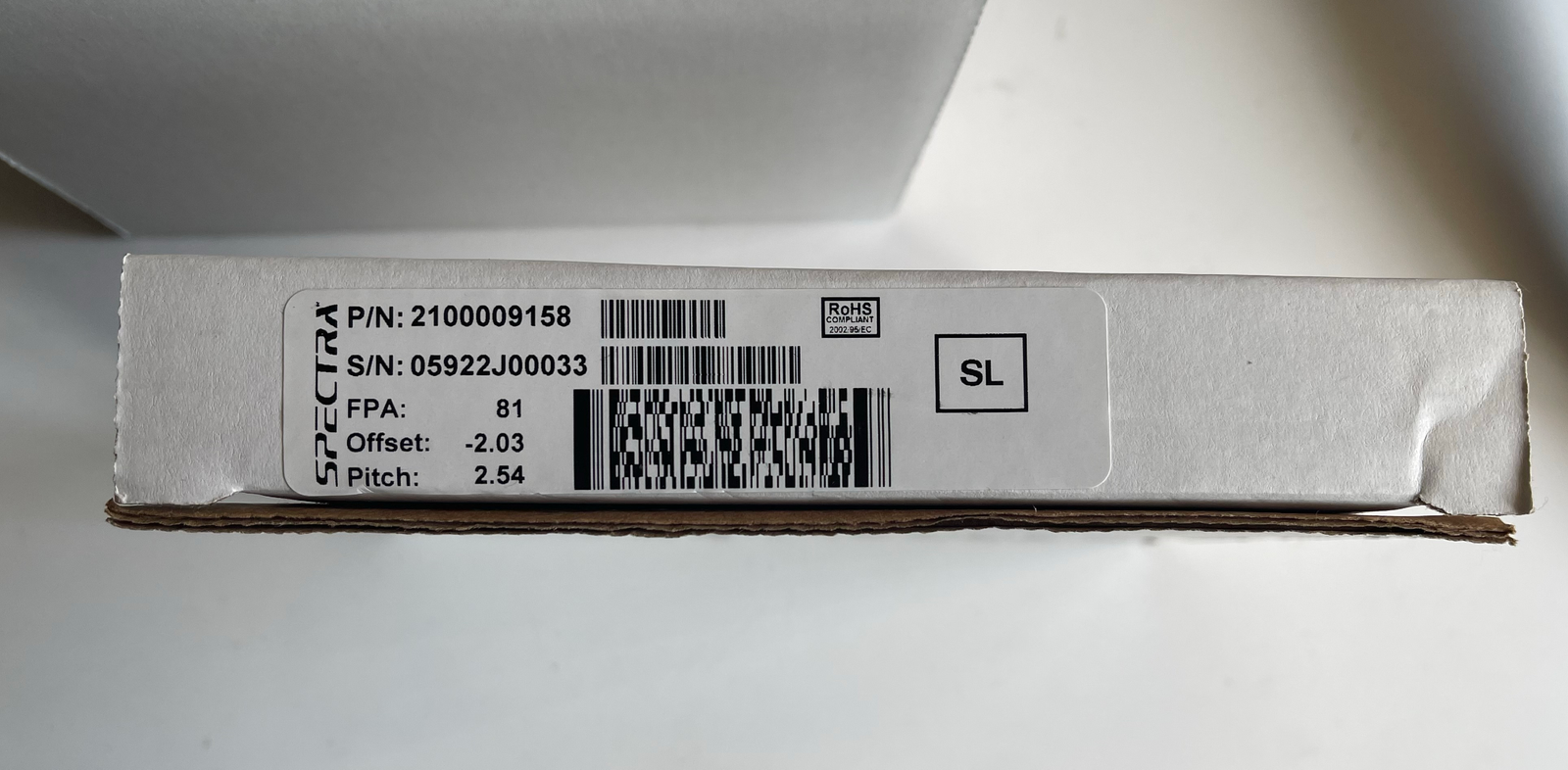

2100009158 SPECTRA SL 80PL PRINTHEAD
$6.00
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
The SL-128 AA is a highly compact and lightweight jetting assembly designed specifically for inkjet applications requiring multiple printheads packed tightly together.
These modules are ideal for fast-moving, high-performance printer carriage designs. General compatibility with a wide range of fluids makes the SL-128 AA jetting assembly extremely versatile.
Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 jets. The nozzles are arranged in a single line, at a 0.020-inch distance between nozzles. Resolutions up to 450 dpi are possible.
Features
- 80 picoliter calibrated drop size.
- Resolutions up to 450 dpi.
- 128 individually addressable, inline nozzles.
- Lightweight and highly stackable.
- Orientation independent.
- Supports solvent and UV-curable based inks.
- Dual ported for ease of flushing.
- Optional temperature control.
| SL-128/80 AA | |
| Active nozzles | 128 |
| Nozzle spacing | 508 μm |
| Nozzle diameter | 80 μm |
| Drop velocity | 8 m/s |
| Printhead weight (dry) | 35 g (1.23 oz) |
| Fluid type | Organic solvents, UV curables |
| Drop volume* | 80 pl |
| Typical firing frequency | 30 kHz |
| Dimensions (WxDxH) | 110x5x110mm |
| Weight | 1.6 kg |
|---|---|
| Dimensions | 30 × 30 × 20 cm |
