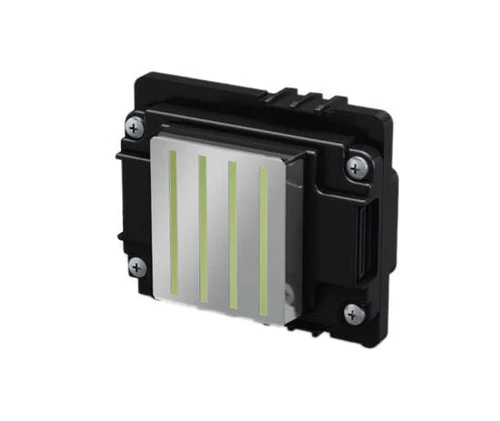

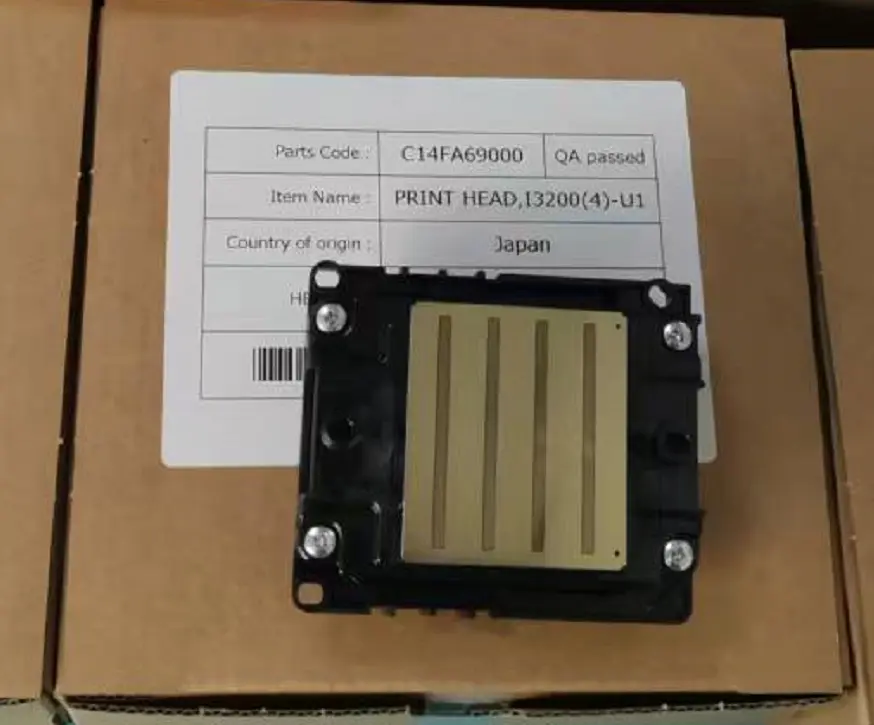

Genuine Print Head for EPSON I3200(4)-U1 (UV) – C14FA69000

The Epson I3200-U1 UV  is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked. We recommend to change the head cables when installing a new printhead.

Specifications :

• Ink Type: UV
• Type: PrecisionCore MicroTFP printhead
• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight: 82g
• Number of nozzles: 3200
• Nozzle pitch/nozzle row: 1/300 inch
• Nozzle rows: 8 rows
• Nozzle Resolution: 300 noi/row 600 npi/2 rows
• Max. number of colours inks: 4 colours
• Effective print width: 33.8 mm (1.33 inches)
• Droplet ejection performance :
  Binary: 5 plat 43.2 kHz
  3 levels grey scale: 6, 12.5 pl at 21.6 kHz
  4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz
• Viscosity range: 5-7 mPa·s
• This printhead carries a manufacturer’s’s warranty.
• Country of origin: Japan

Printer compatibility

Audley ADL6003UV

Nocai NC-Cyclone-400

Nocai NC-UV0609MAX

Signstar BT-1804UN

Signstar UV-6090

Signstar UX-1802

Sinocolor FB-0906D

Sinocolor FB-2513S

Sinocolor HUV-2000S

Sinocolor HUV-2600S

Sinocolor HUV-3200S

Sinocolor UE-2000D

Sinocolor UR-2000S

Sinocolor UR-3200S

Sinocolor UR-5000S

Sinocolor UV-1260S

Sinocolor UV-740S

Textek UV-F604
